A magnetic filter is one of those components that earns its place on every boiler installation – yet it’s still occasionally treated as optional or an afterthought. Fitting one correctly makes a tangible difference to system longevity, boiler efficiency and the amount of sludge an engineer finds at the annual service. Whether you’re fitting a filter to a brand-new system or retrofitting to an existing installation, getting the placement, sizing and commissioning right from the start is what separates a filter that works from one that’s merely present. This guide covers the full process in practical, on-site terms.

If you’ve ever opened a boiler that’s been running without protection and found the heat exchanger coated in black sludge, you’ll understand why fitting a magnetic filter for boilers is worth doing as standard on every installation. The Elterm range available from Culm Stores covers systems from compact domestic units through to large commercial installations – but whichever model you choose, correct installation is what determines whether the filter actually does its job.

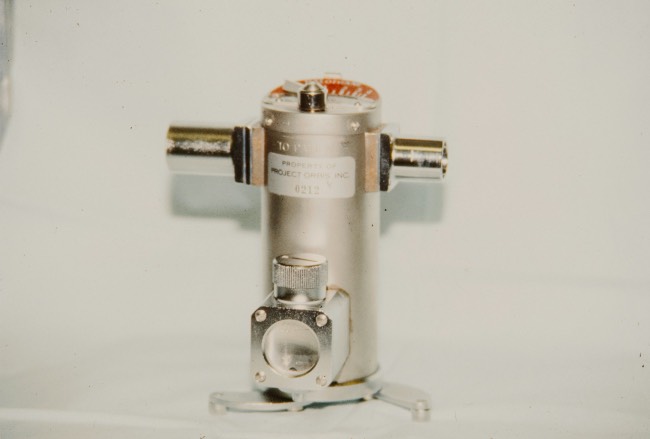

What a magnetic filter does – and why it matters

Magnetite is the primary enemy of central heating systems. It forms when dissolved oxygen in system water reacts with ferrous pipework and components, producing fine iron oxide particles that circulate with the water and gradually accumulate as black sludge. This sludge settles in radiators (causing cold spots), coats heat exchanger surfaces (reducing efficiency and increasing gas or electricity consumption) and accelerates wear on pump impellers and valve seats.

A magnetic filter captures these particles continuously as water circulates through it. The powerful magnet inside the filter housing attracts iron oxide before it can reach the boiler, keeping the primary heat exchanger clean and the system running efficiently. It won’t undo damage that’s already done – but fitted early, it prevents the problem from developing in the first place.

Sizing and selecting the right filter

Before you order, confirm the system’s heat output and pipework sizes. Magnetic filters are rated by kW and connection size; fitting an undersized filter on a large system reduces capture efficiency and may restrict flow. Key selection criteria:

Match the filter’s kW rating to the boiler’s maximum output with a sensible margin.
Confirm connection size (BSP thread or flanged) matches the return pipework.
For commercial plant rooms, consider combined air and dirt separators with integrated magnetic elements – these handle both air removal and particle capture in a single unit.
Check that the filter body material is compatible with the system’s inhibitor and water chemistry.

Tools and materials you’ll need

Pipe cutter or hacksaw (appropriate to pipe material)
PTFE tape and/or jointing compound
Adjustable spanners and pipe grips
Isolation valves (if not already fitted)
Drain hose and bucket
System pressure gauge
Inhibitor (to dose after installation)
Commissioning log or record sheet

Where to fit the filter: placement matters

Fit it on the return pipe. Every time. The return pipe carries water back to the boiler from the radiators and is where magnetite concentration is highest. Fitting the filter here means it intercepts particles before they enter the boiler heat exchanger – which is exactly where you want the protection.

Practical positioning tips:

Install as close to the boiler as practicable, on the return pipe connection.
Ensure the filter is accessible for servicing – leave enough clearance to remove the magnetic element and drain the dirt pot without awkward manoeuvring.
Fit the filter in the correct orientation as specified by the manufacturer (most are designed for horizontal or vertical installation with specific flow direction).
Always fit isolation valves either side of the filter. Skipping this step means draining the system every time the filter needs cleaning – an unnecessary inconvenience that tends to result in servicing being skipped.

Step-by-step installation guide

Isolate the boiler and system; switch off power and allow to cool.
Drain down the section of pipework where the filter will be fitted. Use a drain cock if available; have a bucket and hose ready.
Cut the return pipe at the chosen location, ensuring square cuts and clean pipe ends.
Fit isolation valves either side of the intended filter position if not already present.
Apply PTFE tape or jointing compound to the filter connections; hand-tighten then spanner-tighten to the manufacturer’s specified torque.
Confirm the flow direction arrow on the filter body matches the direction of water flow in the return pipe.
Slowly open the isolation valves and refill the system; check all connections for leaks under pressure.
Vent radiators and restore system pressure to the manufacturer’s recommended level.
Restore power to the boiler and run the system through a full heating cycle.
Check connections again for weeping joints once the system is at operating temperature.

Commissioning checks

Once the system is running, verify:

System pressure is stable and within the recommended range.
No leaks at filter connections or isolation valves.
Flow rates are unaffected – a correctly sized filter should add negligible resistance.
Dose the system with a quality corrosion inhibitor immediately after installation. A magnetic filter captures particles but does not prevent the electrochemical reactions that produce them – inhibitor dosing addresses the root cause.

Record the installation details: filter model, location, system volume and inhibitor product and concentration. This forms the baseline for future service visits.

First service: what to expect

On older systems being retrofitted with a magnetic filter, the first service – typically after one heating season – often reveals a significant quantity of black or dark brown sludge in the dirt pot and on the magnetic element. This is normal and is evidence the filter is working. Clean the element thoroughly, drain and dispose of the collected material, and re-check inhibitor concentration.

On new systems, the first service may reveal installation debris, flux residues and a smaller quantity of magnetite. Either way, note the volume and colour of collected material in the service log – it’s a useful indicator of system condition over time.

Common installation mistakes to avoid

Fitting the filter on the flow pipe rather than the return pipe.
Installing without isolation valves, making future servicing impractical.
Choosing the wrong connection size or kW rating.
Failing to dose with inhibitor after installation – the filter and inhibitor work together, not independently.
Ignoring manufacturer orientation guidance, which can reduce magnetic capture efficiency.
